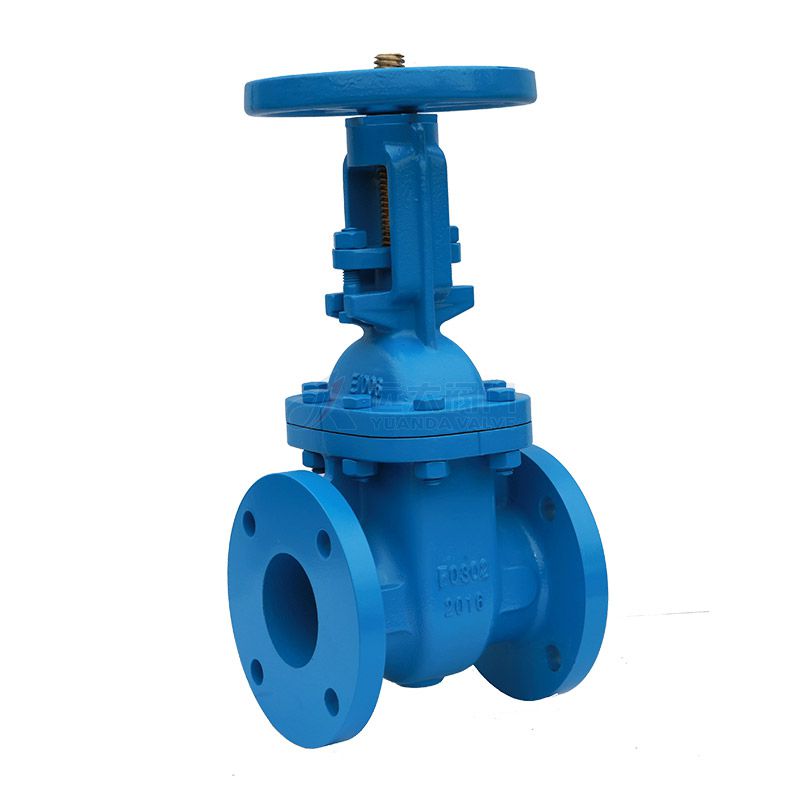

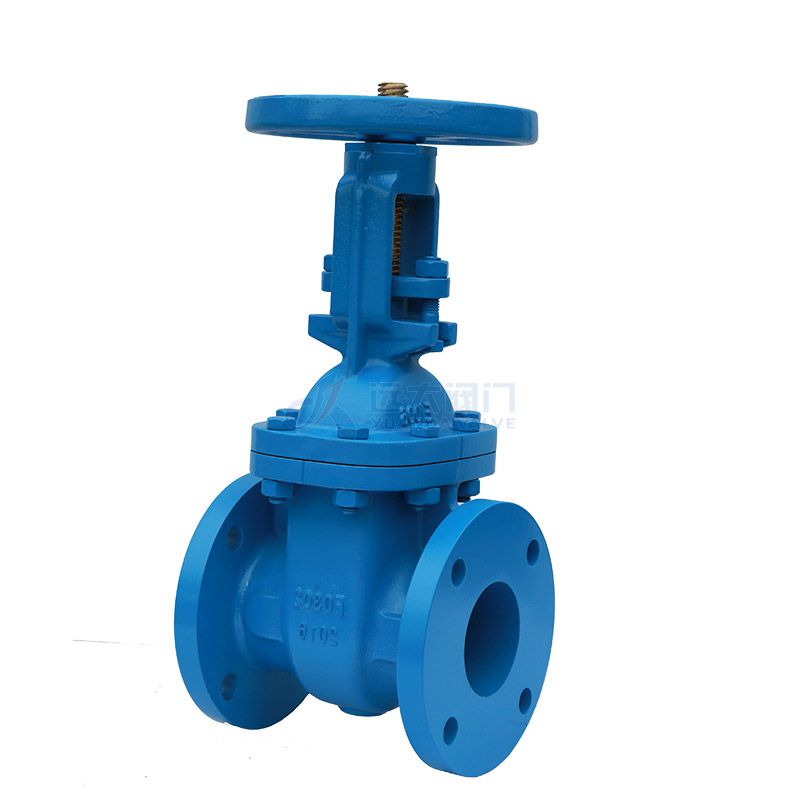

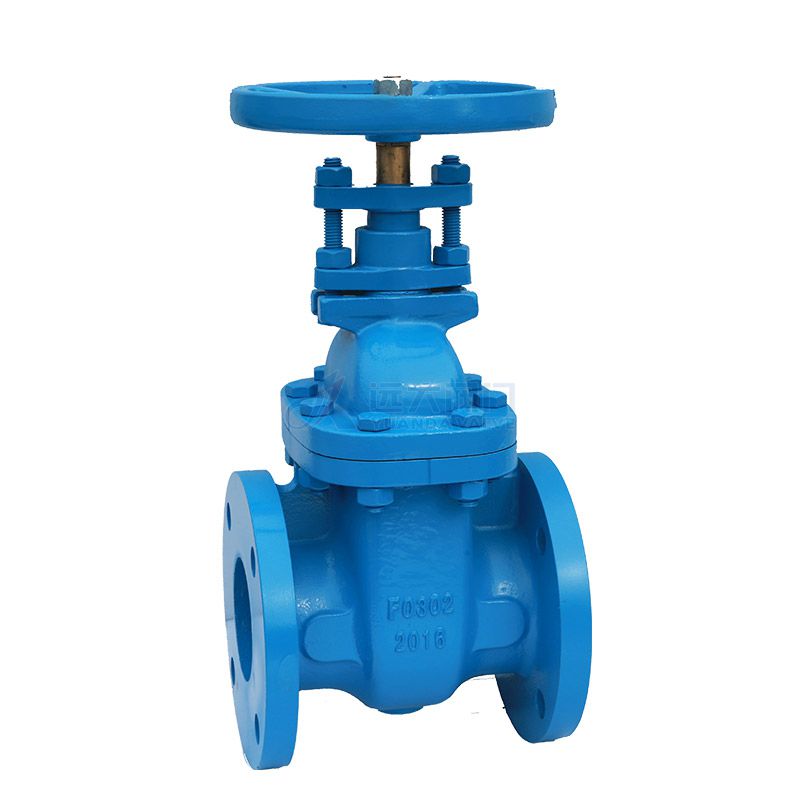

ANSI Cast Iron Rising Stem Gate Valve

Technical Requirement:

1. Design and Manufacture: MSS SP-70

2. Face to Face: ANSI B16.10

3. Flange End: ANSI B16.1

4 Test: MSS SP-70

информация о продукте

ANSI Cast Iron Rising Stem Gate Valve

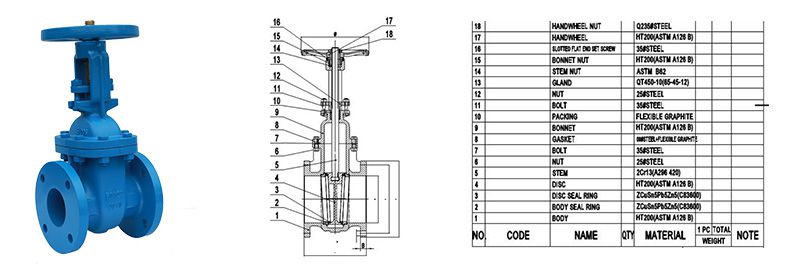

Main parts and materials

Parts NameMaterials
Body、BonnetASTM A126 B
DiscASTM A126 B
StemSS420
Seat RingBRASS


Product Features:

1. Small fluid resistance, the internal structure of the valve body is straight-through, so the medium can be unimpeded;

2. The motion direction of the gate valve and the flow direction of the medium are perpendicular to each other, with fast opening and closing speed and labor saving
