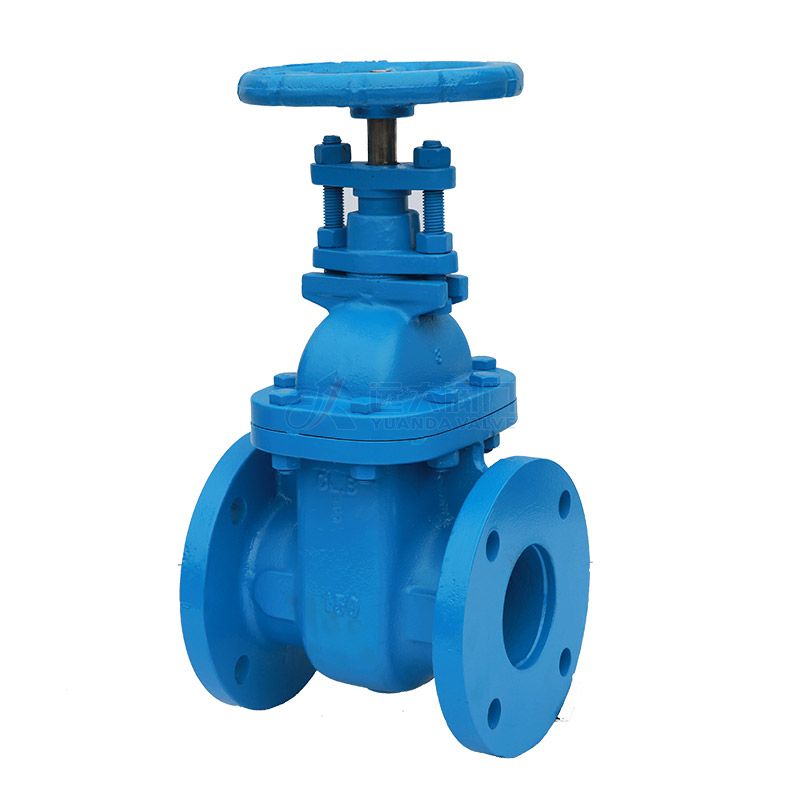

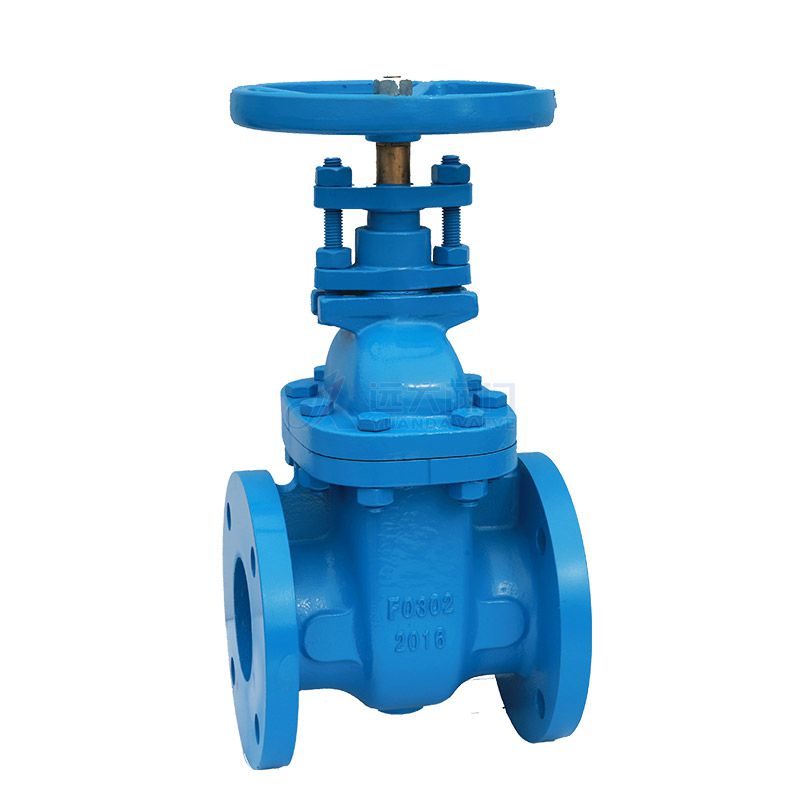

ANSI Cast Iron Non-Rising Stem Gate Valve

Technical Requirement:

1. Design and Manufacture: MSS SP-70

2. Face to Face: ANSI B16.10

3. Flange End: ANSI B16.1

4 Test: MSS SP-70

информация о продукте

ANSI Cast Iron Non-Rising Stem Gate Valve

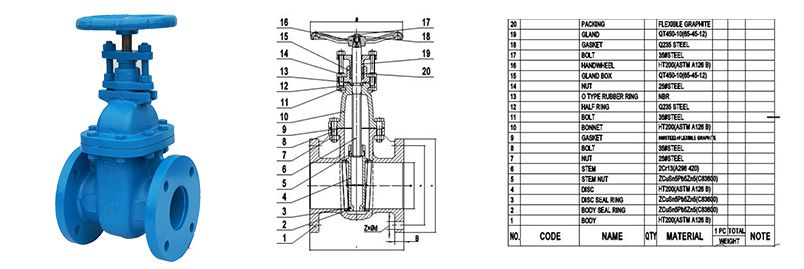

Main parts and materials

Parts NameMaterials
Body、BonnetASTM A126 B
DiscASTM A126 B
StemSS420
Seat RingBRASS


Product Features:

1. The structure is tight and the design is reasonable. The valve has good rigidity, the channel DU is smooth and the flow resistance coefficient is small.

2. Stainless steel and hard alloy are used for the sealing surface, and dao has long service life.

3. Flexible graphite packing, reliable sealing, light and flexible operation.

4. Driving mode:  split, electric, pneumatic and gear transmission, structure: elastic wedge type single gate, rigid wedge type single gate and double gate models.
