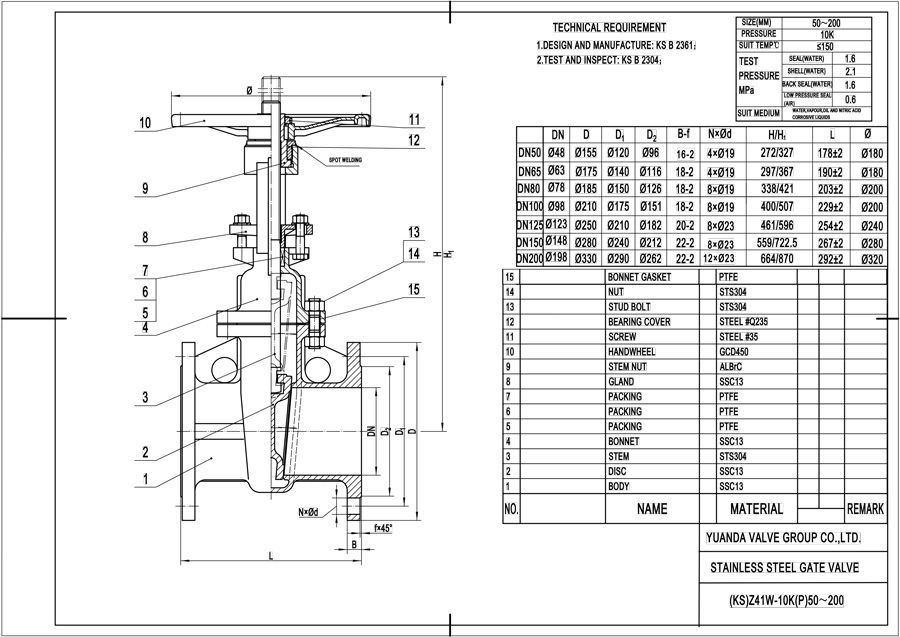

Technical Requirement:
1. Design and Manufacture: KS B 2361;
2. Face to Face: KS B 2361;
3. Flange End: KS B 2361;
4. Test: KS B 2304;
информация о продукте
Main parts and materials
| Parts Name | Materials |
| Body、Bonnet | SCS13 |
| Disc | SCS13 |
| Stem | STS304 |
| Packing | PTFE |
Product Features
The valve is composed of valve body, bonnet, gate, stem and handwheel, etc. By turning the hand wheel, the stem rises or falls, thereby driving the gate to rise or fall, making a straight displacement perpendicular to the fluid, to achieve the purpose of opening and closing.
SUIT MEDIUM: WATER, VAPOUR, OIL AND NITRIC ACID CORROSIVE LIQUIDS
