  • KS Stainlees Steel Middle Flange Check Valve

  • KS Stainlees Steel Middle Flange Check Valve

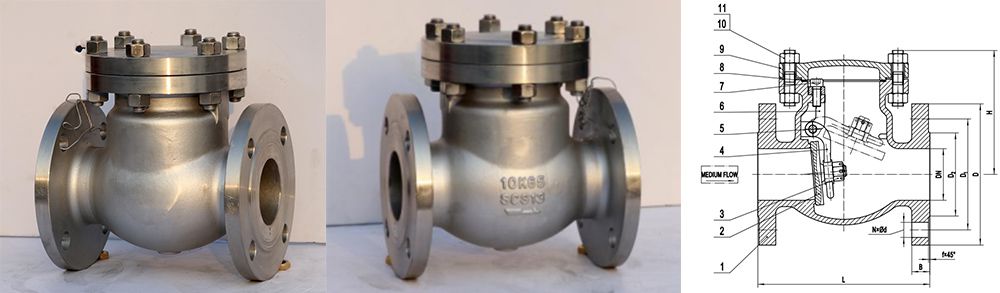

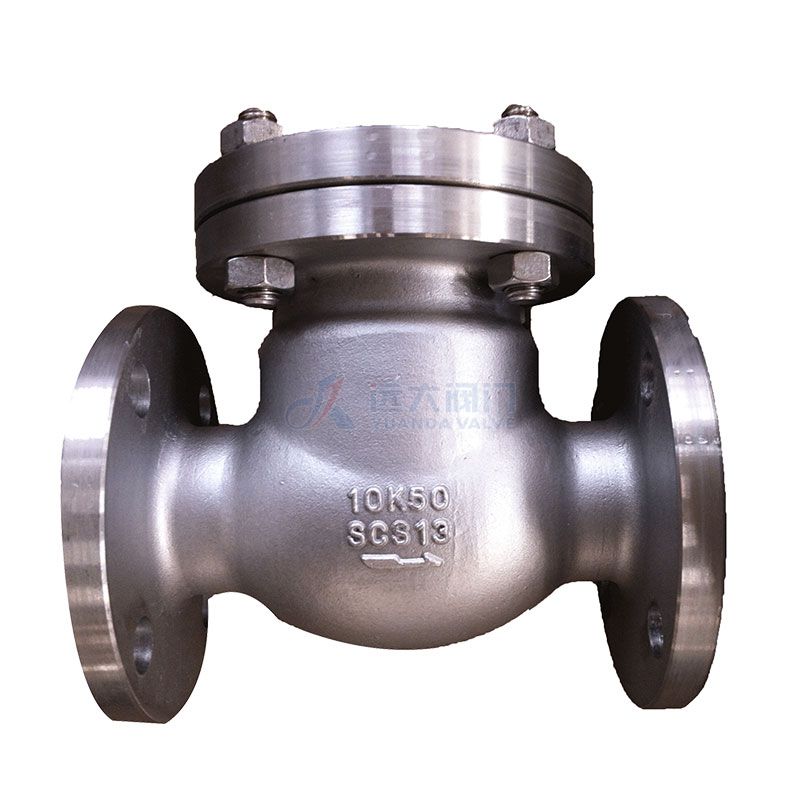

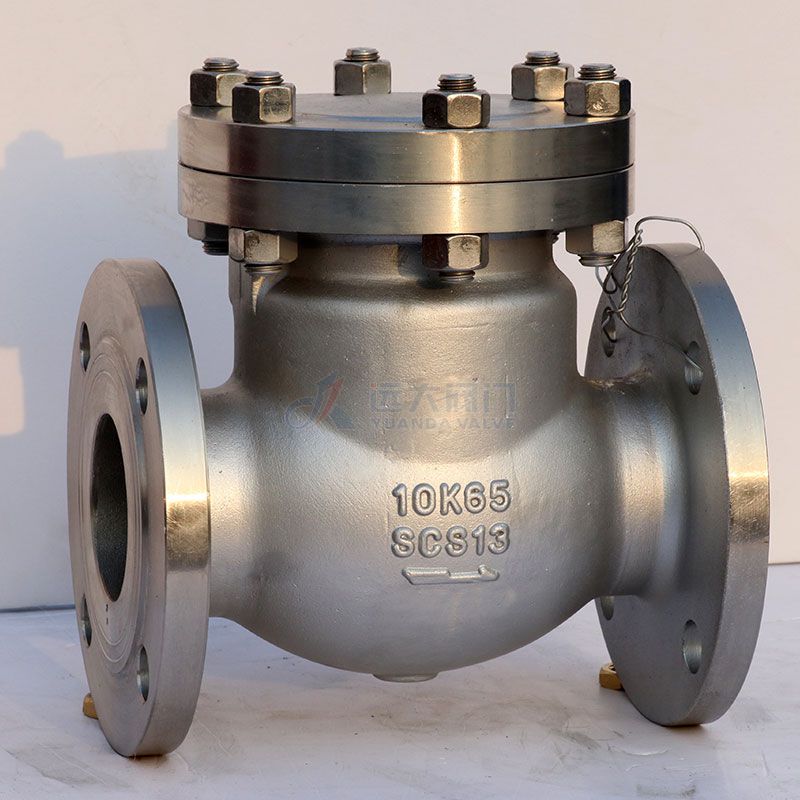

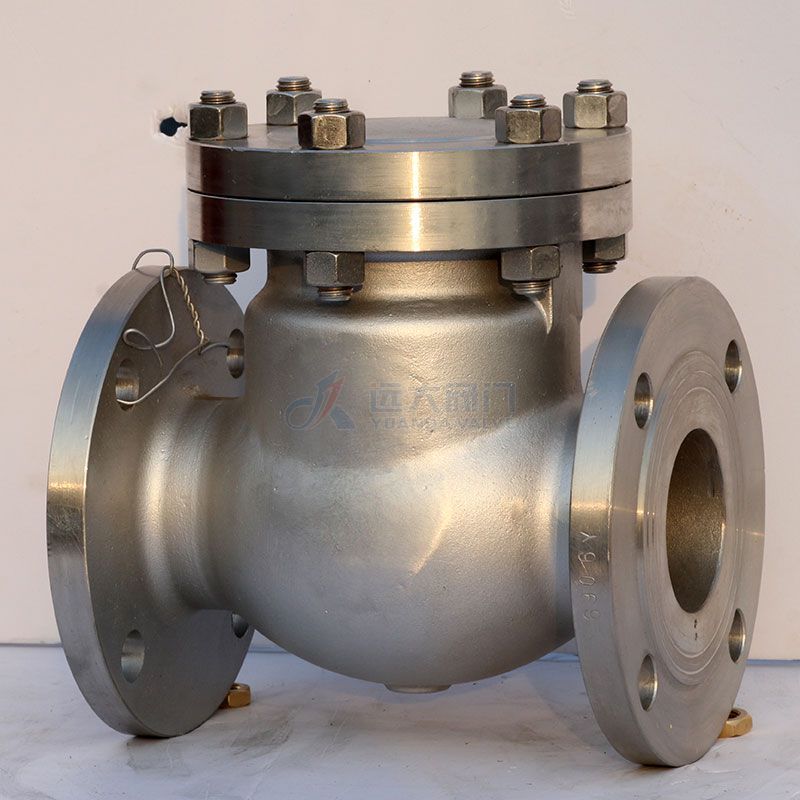

KS Stainlees Steel Middle Flange Check Valve

Technical Requirement:

1. Design and Manufacture: KS B 2361;

2. Face to Face: KS B 2361;

3. Flange End: KS B 2361;

4. Test: KS B 2304;

информация о продукте

KS Stainlees Steel Middle Flange Check Valve

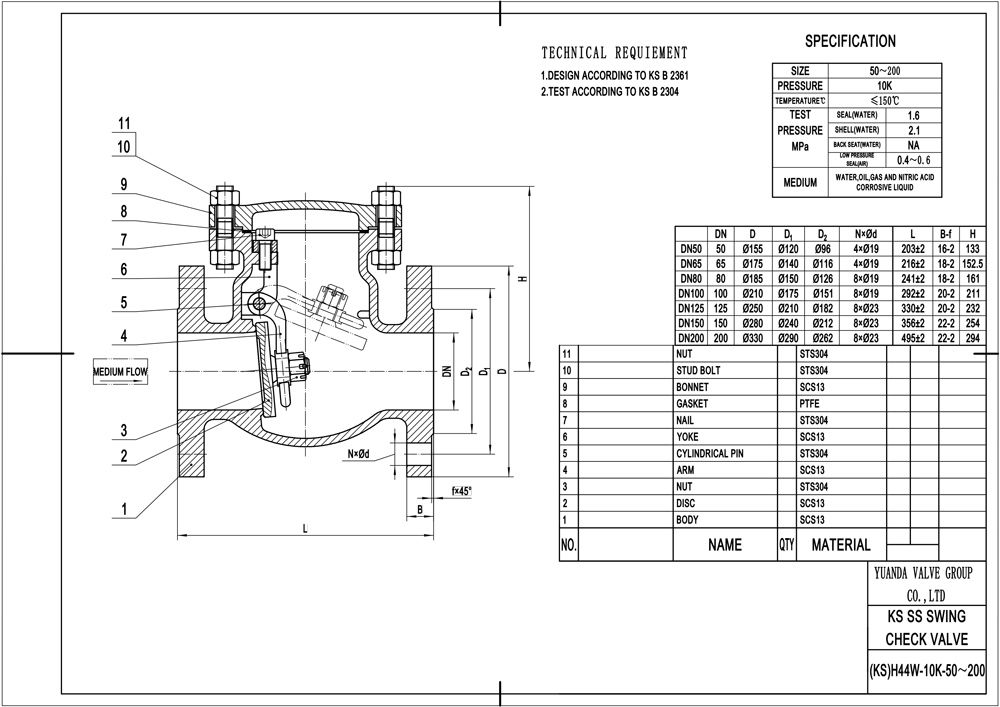

Main parts and materials

Parts NameMaterials
Body、BonnetSCS13
DiscSCS13
PinSTS304
GasketPTFE


KS Stainlees Steel Middle Flange Check Valve


Product Features

The valve is composed of valve body, valve cover, valve disc, rocker and other parts. The valve disc can automatically prevent fluid backflow. The valve disc of this valve is opened under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side. When the inlet pressure is lower than the outlet pressure, the valve disc will automatically close under the action of the fluid pressure difference and its own gravity to prevent the medium from flowing backward.

SUIT MEDIUM: WATER, OIL, GAS AND NITRIC ACID CORROSIVE LIQUID
